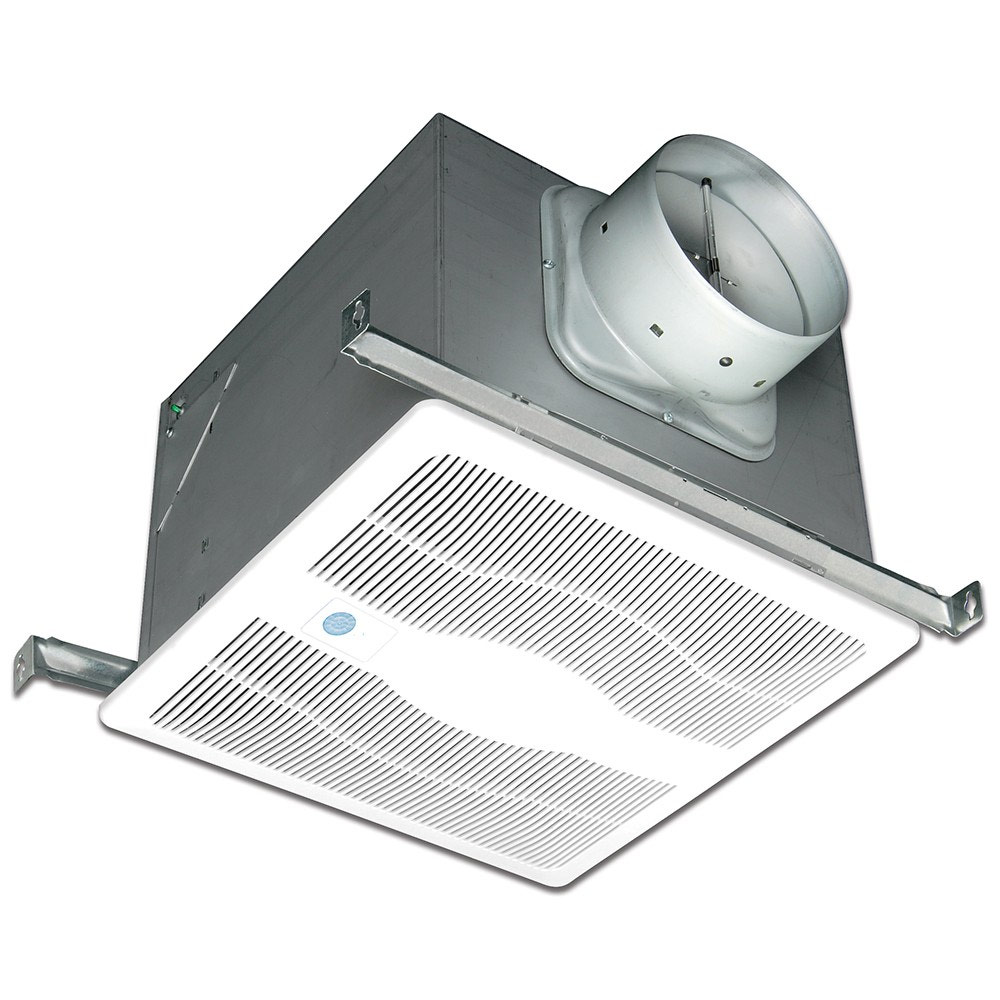

AIR-KING’S ESBGH Series Exhaust Fan



Integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity and or Integrated motion sensor detects when the room is occupied and turns the fan on. Once the room is vacated, the fan continues to run for a preset amount of time to make sure proper ventilation has occurred. Sensor can be set from 30 seconds to 80 minutes. Single or two speed exhaust fans. 6" Round metal duct connector with spring loaded metal damper protects against back drafts and seals the duct better than any other damper on the market today. Boost feature ensures proper air delivery regardless of installation conditions (long duct runs etc). Perfect solution to meet ASHRAE 62.2 continuous whole house ventilation. Listed for installation over a tub or shower on a GFCI circuit.  Welded galvanized steel housing includes adjustable hanger bar for easy installation. Side access panel allows you to wire the fan from inside or outside the housing. Fan ceiling flange seals the fan housing against the ceiling drywall to prevent air leaks.



Features: ESBGH SERIES ENERGYSTAR LISTED EXHAUST FAN, SINGLE SPEED AND DUAL SPEED UNITS WITH HUMIDITY AND OR OCCUPANCY SENSING RATED FOR  CONTINUOUS OPERATION, LOW SONE, BOOST SPEED. 1 spd. 80 CFM/ <0.3 sones, 130 CFM/ 0.4 Sones, 2 spd. 80/30 CFM / <0.3 Sones, 130/50 CFM / 0.4/<0.3 Sones.


More BUILT GREEN® Approved Products by Air-King Ventilation Products:

AIR-KING's BFQ50 Exhaust Fan

AIR-KING’S BFQ80 Exhaust Fan

AIR-KING’S AK80LS-1 Exhaust Fan

AIR-KING’S AK90 Exhaust Fan

AIR-KING’S AK100D Exhaust Fan

AIR-KING’S AKLS6 Series Exhaust Fan

AIR-KING’S AK280LS Exhaust Fan

AIR-KING’S AK200LS Exhaust Fan

AIR-KING’S AK150LS Exhaust Fan

AIR-KING’S ESB Series Exhaust Fan

AIR-KING’S BFQF50 Exhaust Fan/Light

AIR-KING’S BFQF70 Exhaust Fan/Light

AIR-KING’S AKF50 Exhaust Fan/Light

AIR-KING’S AKF80LS Exhaust Fan/Light

AIR-KING’S AKF100 Exhaust Fan/Light

AIR-KING’S AKF100D4 Exhaust Fan/Light

AIR-KING’S AKF80H Exhaust FanLight

AIR-KING’S AKF100H Exhaust FanLight

AIR-KING’S ESF Series Exhaust Fan/Light

AIR-KING’S ESFGH Series Exhaust Fan/Light

AIR-KING’S WAIT 1000 CENTRAL DRUM STYLE FURNACE MOUNT HUMIDIFIER




Contact Name: Lisa Grant

Contact Email: lgrant@airkinglimited.com

Phone: 905.456.2033

Website: www.airkinglimited.com

Manufacturer: Air-King Ventilation Products


BUILT GREEN® Checklist

This product earns points by providing these functions:

Single Family Checklist

4.3.1  All ventilation fans (bath or in-line type) meet or exceed the ENERGY STAR requirements.

4.8  All local bath exhaust fans used throughout home have a noise level of 1 sone or less (2 points).

High Density Checklist

1.2.12  Install ENERGY STAR labeled bathroom exhaust fans for each unit (for 1 point).
